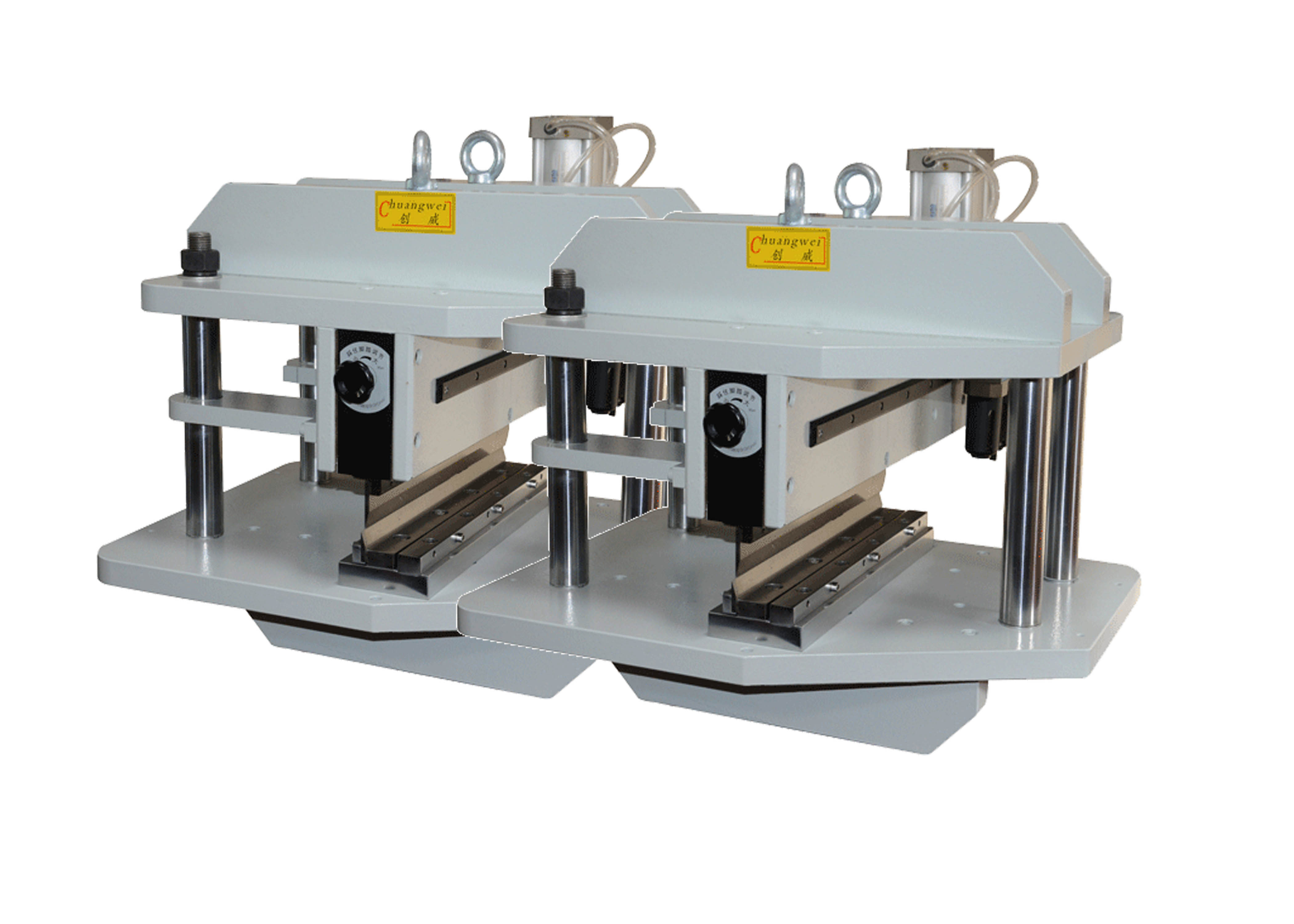

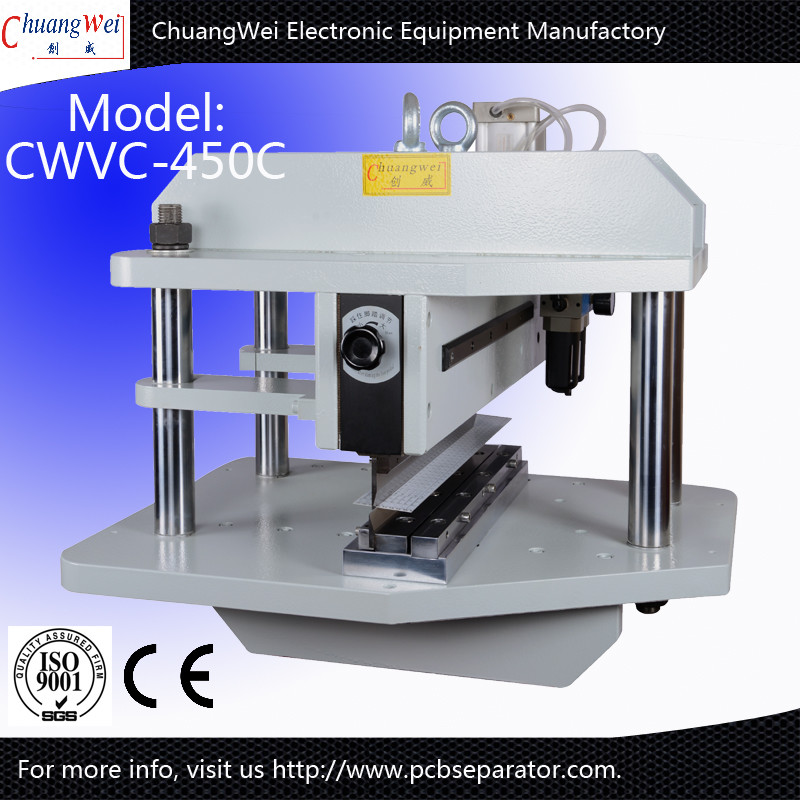

Aluminum And Copper Pre-scored PCB Singulation Machine CWVC-450
The most professional PCB singulation machine manufacturers in China.
V-CUT PCB singulation machine:
1.Nice for singulating v cut metal board,Aluminium PCB,LED strip,Copper PCB etc.
2.Singulate rigid and thick board fluently.
3.Use pneumatic-driven and electromagnetic valve to operate.
V-CUT PCB singulation machine specifications:
| Model | CWVC-450 |
| Linear Blades length | 450mm(Can custom made) |
| Material of blades | high speed steel |
| Max.PCB singulating length | unlimted |
| PCB singulating thickness | 0.3-3.5mm |
| Voltage and Power | 110V/220V -- 10W |
| Working air pressure | 0.5-0.7Mpa |
| PCB singulating speed | due to operator skilled level |
| PCB singulation machine size | 900*760*750 |
| PCB singulation machine weight | 475kg |
V-CUT PCB singulation machine features:
1.New style rigid machine structure design,singulation any length rigid and thick metal board more safely and easily.
2.Singulate long boards directly,without turning PCB direction.
3.Singulating process without vibrations due to pneumatic drive unit.
4.Singulating PCB without bending and tension stress.
5.PCB control operation is that operator stamps the foot pedal to singulate PCB.
6.Highest components near the v groove of PCB can be up to 50mm.
7.Gap for insertion of PCB can be easy to adjust.
***V-CUT PCB singulation machine video please see below:(CWVC-450)***
http://www.youtube.com/watch?v=DjWkOKP3ptI http://v.youku.com/v_show/id_XNTgyMTAyNzQw.html
***Chuangwei PCB singulation machine***
***Since 2004 ChuangWei started to development,manufacture,sale,service for PCB singulation machine, until now,we have produced different kind PCB singulation machine type for manual,motor-driven,pneumatic-driven,mold and die punching,milling cutter router etc.
***You can depend on your company's condition and choose the most suitable one.
***Also We can manufacture PCB singulation machine base your actual requires.
***PCB singulation machine mainly applies to singulate various shape,length and thickness Printed Circuit Board(PCB) which include Rigid PCB,Flexible PCB(FPC) and Rigid-flex PCB etc.For example electronic and digital products FR4 PCB,FR6 PCB ,Aluminium PCB, Copper PCB, LED strips,LED tubes PCB,Solar energy PCB and different FPC etc.
